Customized factory automation system
- Semiconductor manufacturing (Front end process) system
- ECU inspection system
Semiconductor manufacturing (Front end process) system
Automatic mask exposure system
Exposure | 1:1(actual size),Contct exposure |
---|---|
Contact method | Hard,Soft,Gap |
Adaptable work | 4inch(3inch~8inch possible) |
Adaptable mask | 5inch |
Exposure source of light | Primal wavelength 365/405/436nm |
Alignment precision | ±1.0μm(2million pixels/CCD/microscope of 4times magnifications) |
Control | automatic exposure system/2magazines available |

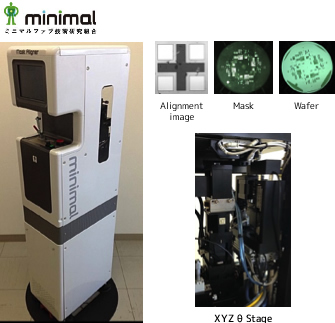

Minimal mask aligner
We manufacture mask aligners as a member of “minimal fab technology research association of National Institute of Advanced Industrial Science and Technology”
Optical system for mark | 2million pixels camera(4times magnifications of objective lens) |
---|---|
Optical systemfor orientation flat | 2million pixels camera(4times magnifications of objective lens) |
XYZ alignment axis | resolution 0.1μm |
θaxis | resolution 8sec(0.00225°) |
Exposure light source (LED) | wavelength=365±5nm irradiation intensity=45mw/cm2 |
Adaptive | φ0.5incht=0.8mm |
Adaptive mask | φ0.5inch |
Exposure method | Possible to set with 0.1μm resolution optionally Soft contact (load cell pressure detection) hard contact (flowing up by the air) |
Minimalfab Website
http://www.minimalfab.com/
Roll pressurization type imprint system
Outline
This system is for UV imprinting from large size mold to film substrate. This system coats UV cured resin on the mold, and put film base material on the top, and applies pressure by a roller which is pressurized and speed controlled with high accuracy, then is cured and patterned by UV irradiation. Coat UV resin: Manual (option: coat automatically by dispenser)
Bar coater | Spread UV resin equally by the bar coater |
---|---|
Transcription method | Roller pressure method by the Transcription roller (Transcription speed 0.1mm/sec-50.0mm/sec) |
Flatness accuracy | Stone plate 00 level (flatness accuracy=2μm) |
Adaptive method | 1200mm x 750mm thickness 30mm |
Exposure ligth source of UV (LED) | wavelength=375nm effective length=800mm (manufactured by RiseOne) |
Others | Install film cleaner and discharging bar |
Image Figure
Other systems
Tape transcription and collating system
Soldering system with automatic alignment
Audio repeated inspection system
Wire bonding system
Glue coating system
ECU intermediate assemble board inspection system / Final inspection system
Product Inquiry
Inquiries about products please contact RiseOne .
We propose the best equipment , depending on the application and budget .
